galvanized hexagonal mesh|hexagonal wire mesh|wire mesh of galvanized hexagonal-galvanized hexagonal wire mesh Professional production technology-Topnetting

applications:stregthen the building surface ,power plant boiler pipe,boiler warm,antifreez and residential protection,protect the ploutry,protect and support the seawall,slope,road,etc.

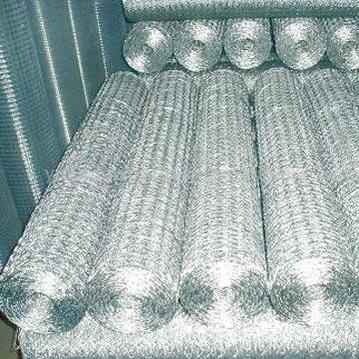

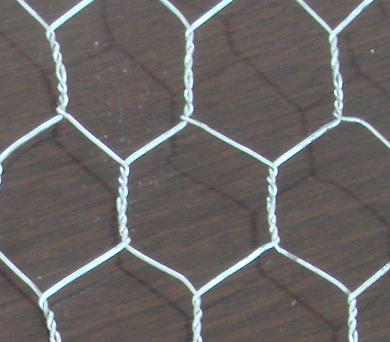

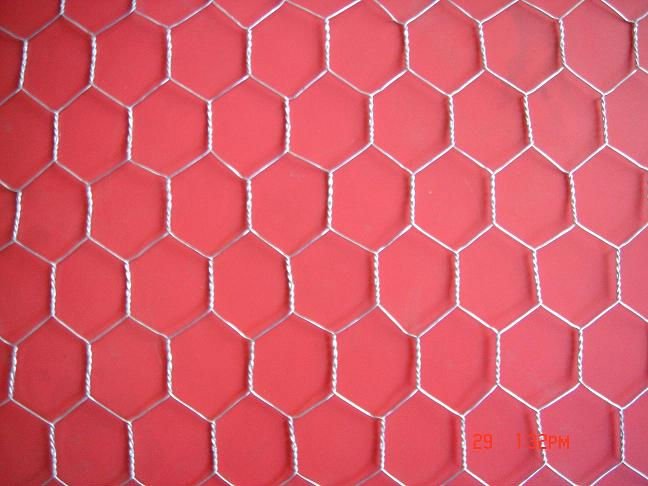

galvanized hexagonal wire mesh

specifications:

Specification in Inch

Specification in Metric Unit

Wire Gauge(BWG)

Technical Note

1/2"

1.5CM

22

Max. roll width: 2m;
Single or double edge

24

3/4"

2CM

20

Max. roll width: 2m; Single, double, or with reinforced edge for customer's choice

22

24

5/8"

1.8CM

21

Single or double edge

23

25

1"

2.5CM

19

>Max. roll width: 2m; Normal and reverse twist

21

23

1.25"

3CM

19

Max. roll width: 2m; Normal and reverse twist

21

1.5"

4CM

18

>Max. roll width: 2m

20

22

&2"

5CM

18

Max. roll width: 2m

Specification in Inch	Specification in Metric Unit	Wire Gauge(BWG)	Technical Note
1/2"	1.5CM	22	Max. roll width: 2m; Single or double edge
		24
3/4"	2CM	20	Max. roll width: 2m; Single, double, or with reinforced edge for customer's choice
		22
		24
5/8"	1.8CM	21	Single or double edge
		23
		25
1"	2.5CM	19	>Max. roll width: 2m; Normal and reverse twist
		21
		23
1.25"	3CM	19	Max. roll width: 2m; Normal and reverse twist
		21
1.5"	4CM	18	>Max. roll width: 2m
		20
		22
&2"	5CM	18	Max. roll width: 2m
