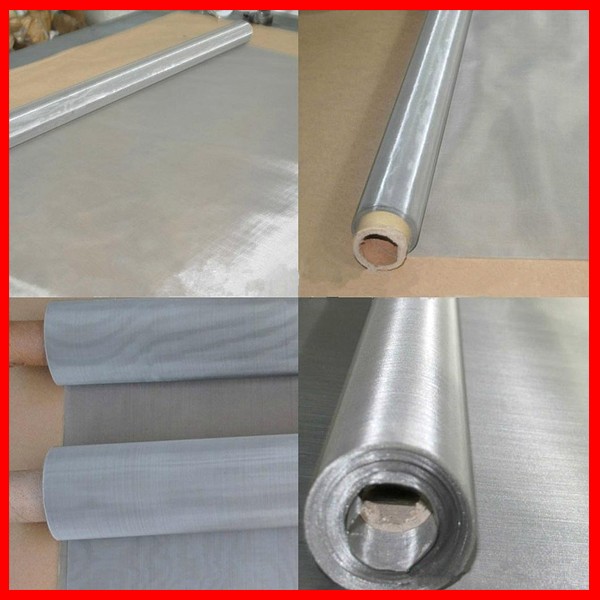

The stainless steel wire mesh for e-cig wick
Material: sus 304L/316/316L
Weave pattern: plain weave/twill weave
Mesh count: 100/200/300/325/400/500
Standard roll: 1mx30m
Application:
1. E-cig wick making
2. RMF/EMI shielding mesh
3. Line mesh for filter strainers and filter basket
4. Plated wire mesh for water filter basket
5. Filter disc packs
Our reference chart
Mesh |
Wire Dia |
Aperture |
Aperture Area |
Weight£¨lbs£© /100 ft2 |
||
Inch |
mm |
Inch |
mm |
|||
1x1 |
.080 |
2.03 |
.920 |
23.37 |
84.6 |
41.1 |
2X2 |
.063 |
1.60 |
.437 |
11.10 |
76.4 |
51.2 |
3X3 |
.054 |
1.37 |
.279 |
7.09 |
70.1 |
56.7 |
4X4 |
.063 |
1.60 |
.187 |
4.75 |
56.0 |
104.8 |
4X4 |
.047 |
1.19 |
.203 |
5.16 |
65.9 |
57.6 |
5X5 |
.041 |
1.04 |
.159 |
4.04 |
63.2 |
54.9 |
6X6 |
.035 |
.89 |
.132 |
3.35 |
62.7 |
48.1 |
8X8 |
.028 |
.71 |
.097 |
2.46 |
60.2 |
41.1 |
10X10 |
.025 |
.64 |
.075 |
1.91 |
56.3 |
41.2 |
10X10 |
.020 |
.51 |
.080 |
2.03 |
64.0 |
26.1 |
12X12 |
.023 |
.584 |
.060 |
1.52 |
51.8 |
42.2 |
12X12 |
.020 |
.508 |
.063 |
1.60 |
57.2 |
31.6 |
14X14 |
.023 |
.584 |
.048 |
1.22 |
45.2 |
49.8 |
14X14 |
.020 |
.508 |
.051 |
1.30 |
51.0 |
37.2 |
16X16 |
.018 |
.457 |
.0445 |
1.13 |
50.7 |
34.5 |
18X18 |
.017 |
.432 |
.0386 |
.98 |
48.3 |
34.8 |
20X20 |
.020 |
.508 |
.0300 |
.76 |
36.0 |
55.2 |
20X20 |
.016 |
.406 |
.0340 |
.86 |
46.2 |
34.4 |
24X24 |
.014 |
.356 |
.0277 |
.70 |
44.2 |
31.8 |
30X30 |
.013 |
.330 |
.0203 |
.52 |
37.1 |
34.8 |
30X30 |
.012 |
.305 |
.0213 |
.54 |
40.8 |
29.4 |
30X30 |
.009 |
.229 |
.0243 |
.62 |
53.1 |
16.1 |
35X35 |
.011 |
.279 |
.0176 |
.45 |
37.9 |
29.0 |
40X40 |
.010 |
.254 |
.0150 |
.38 |
36.0 |
27.6 |
50X50 |
.009 |
.229 |
.0110 |
.28 |
30.3 |
28.4 |
50X50 |
.008 |
.203 |
.0120 |
.31 |
36.0 |
22.1 |
60X60 |
.0075 |
.191 |
.0092 |
.23 |
30.5 |
23.7 |
60X60 |
.007 |
.178 |
.0097 |
.25 |
33.9 |
20.4 |
70X70 |
.0065 |
.165 |
.0078 |
.20 |
29.8 |
20.8 |
80X80 |
.0065 |
.165 |
.0060 |
.15 |
23.0 |
23.2 |
80X80 |
.0055 |
.140 |
.0070 |
.18 |
31.4 |
16.9 |
90X90 |
.005 |
.127 |
.0061 |
.16 |
30.1 |
15.8 |
100X100 |
.0045 |
.114 |
.0055 |
.14 |
30.3 |
14.2 |
100X100 |
.004 |
.102 |
.0060 |
.15 |
36.0 |
11.0 |
100X100 |
.0035 |
.089 |
.0065 |
.17 |
42.3 |
8.3 |
110X110 |
.0040 |
.1016 |
.0051 |
.1295 |
30.7 |
12.4 |
120X120 |
.0037 |
.0940 |
.0064 |
.1168 |
30.7 |
11.6 |
150X150 |
.0026 |
.0660 |
.0041 |
.1041 |
37.4 |
7.1 |
160X160 |
.0025 |
.0635 |
.0038 |
.0965 |
36.4 |
5.94 |
180X180 |
.0023 |
.0584 |
.0033 |
.0838 |
34.7 |
6.7 |
200X200 |
.0021 |
.0533 |
.0029 |
.0737 |
33.6 |
6.2 |
250X250 |
.0016 |
.0406 |
.0024 |
.0610 |
36.0 |
4.4 |
270X270 |
.0016 |
.0406 |
.0021 |
.0533 |
32.2 |
4.7 |
300X300 |
.0051 |
.0381 |
.0018 |
.0457 |
29.7 |
3.04 |
325X325 |
.0014 |
.0356 |
.0017 |
.0432 |
30.0 |
4.40 |
400X400 |
.0010 |
.0254 |
.0015 |
.0370 |
36.0 |
3.3 |
500X500 |
.0010 |
.0254 |
.0010 |
.0254 |
25.0 |
3.8 |
635X635 |
.0008 |
.0203 |
.0008 |
.0203 |
25.0 |
2.63 |
LxW |
L.DxW.D(mm) |
Micron retention Absolute ¦Ìm |
Micron retension Nominal ¦Ìm |
8X85 |
.014X.0126 |
318 £ 340 |
250 £ 255 |
12X64 |
.024X.0165 |
270 £ 285 |
200 £ 205 |
14X88 |
.020X.013 |
225 £ 245 |
150 £ 155 |
20X150 |
.0098X.007 |
155 £ 165 |
100 £ 105 |
24X100 |
.015X.010 |
115 £ 125 |
80 £ 85 |
30X150 |
.009X.007 |
95 £ 100 |
65 £ 70 |
40X200 |
.007X.0055 |
65 £ 70 |
55 £ 60 |
50X250 |
.0055X.0045 |
55 £ 60 |
40 £ 45 |
80X400 |
.0049X.0028 |
43 £ 48 |
35 £ 40 |
LxW |
L.DxW.D(mm) |
Micron retension Absolute ¦Ìm |
Micron retension Nominal ¦Ìm |
20x250 |
.0098x.0079 |
110-120 |
98-105 |
30x360 |
.0098x.0060 |
90-100 |
80-84 |
40x560 |
.0070x.0040 |
70-75 |
47-52 |
120x400 |
.0040x.0025 |
50-55 |
37-43 |
120x160 |
.0040x.0025 |
40-45 |
28-32 |
80x700 |
.0040x.0030 |
35-40 |
24-26 |
200x600 |
.0024x.0018 |
28-32 |
19-21 |
165x800 |
.0028x.0020 |
24-26 |
14-16 |
165x1400 |
.0028x.0016 |
16-18 |
9-11 |
200x1400 |
.0028x.0016 |
12-14 |
5-6 |
250x1400 |
.0022x.0016 |
11-12 |
3-4 |
325x2300 |
.0015x.0010 |
8-9 |
2-3 |
Reverse Dutch Stainless Steel Wire Mesh |
|||||
Wire dia.(mm) |
Mesh thickness(mm) |
Weight |
|||
warp |
weft |
warp |
weft |
Kg/m2 |
|
72 |
15 |
0.45 |
0.55 |
0.18 |
4.78 |
132 |
17 |
0.35 |
0.45 |
0.14 |
4.86 |
152 |
24 |
0.27 |
0.45 |
1.04 |
4.0 |
260 |
40 |
0.15 |
0.27 |
0.69 |
2.2 |
Titanium Wire Mesh is mainly used in acid, alkali conditions.
It works as gas filtration, liquid filtration and other media with separation.
The weave styles are plain weave, twilled weave, MiWen weave the three methods.
