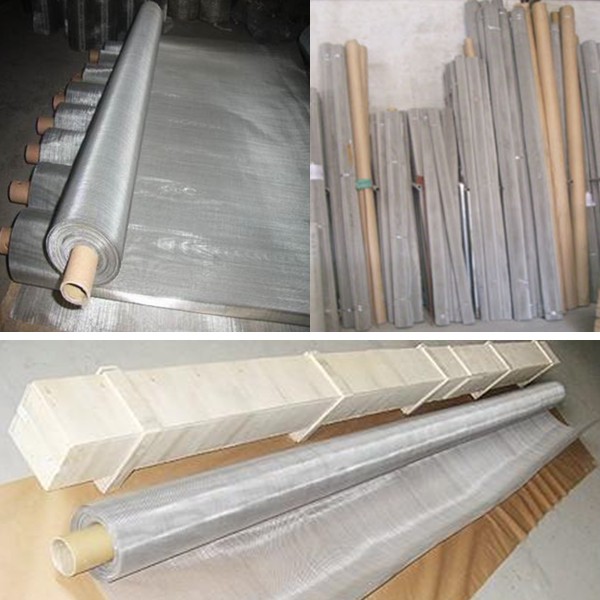

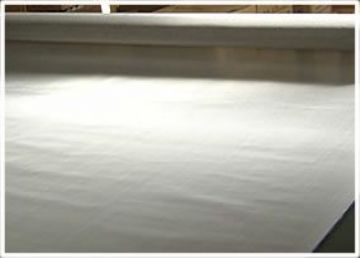

The stainless steel printing wire mesh

Also called stainless steel wider wire mesh

Material: SUS 304/304N/304L/316

Weave pattern: Plain weave

Mesh count: 60/80/100/120/150/180/200/250/270/300/325  mesh/inch

Feature: anti-crossive, anti-abrassive, good high temperature resistent

Application: For paper making Machine, Paper pulp filteration and other industrial filtering, PCB printing mesh

Roll size: Width:1m--6.5m  Length: 10m/20m/30m or as to your request.

Our items specification:

Mesh	Wire Dia		Aperture		Aperture Area	Weight£¨lbs£© /100 ft2
	Inch	mm	Inch	mm
1x1	.080	2.03	.920	23.37	84.6	41.1
2X2	.063	1.60	.437	11.10	76.4	51.2
3X3	.054	1.37	.279	7.09	70.1	56.7
4X4	.063	1.60	.187	4.75	56.0	104.8
4X4	.047	1.19	.203	5.16	65.9	57.6
5X5	.041	1.04	.159	4.04	63.2	54.9
6X6	.035	.89	.132	3.35	62.7	48.1
8X8	.028	.71	.097	2.46	60.2	41.1
10X10	.025	.64	.075	1.91	56.3	41.2
10X10	.020	.51	.080	2.03	64.0	26.1
12X12	.023	.584	.060	1.52	51.8	42.2
12X12	.020	.508	.063	1.60	57.2	31.6
14X14	.023	.584	.048	1.22	45.2	49.8
14X14	.020	.508	.051	1.30	51.0	37.2
16X16	.018	.457	.0445	1.13	50.7	34.5
18X18	.017	.432	.0386	.98	48.3	34.8
20X20	.020	.508	.0300	.76	36.0	55.2
20X20	.016	.406	.0340	.86	46.2	34.4
24X24	.014	.356	.0277	.70	44.2	31.8
30X30	.013	.330	.0203	.52	37.1	34.8
30X30	.012	.305	.0213	.54	40.8	29.4
30X30	.009	.229	.0243	.62	53.1	16.1
35X35	.011	.279	.0176	.45	37.9	29.0
40X40	.010	.254	.0150	.38	36.0	27.6
50X50	.009	.229	.0110	.28	30.3	28.4
50X50	.008	.203	.0120	.31	36.0	22.1
60X60	.0075	.191	.0092	.23	30.5	23.7
60X60	.007	.178	.0097	.25	33.9	20.4
70X70	.0065	.165	.0078	.20	29.8	20.8
80X80	.0065	.165	.0060	.15	23.0	23.2
80X80	.0055	.140	.0070	.18	31.4	16.9
90X90	.005	.127	.0061	.16	30.1	15.8
100X100	.0045	.114	.0055	.14	30.3	14.2
100X100	.004	.102	.0060	.15	36.0	11.0
100X100	.0035	.089	.0065	.17	42.3	8.3
110X110	.0040	.1016	.0051	.1295	30.7	12.4
120X120	.0037	.0940	.0064	.1168	30.7	11.6
150X150	.0026	.0660	.0041	.1041	37.4	7.1
160X160	.0025	.0635	.0038	.0965	36.4	5.94
180X180	.0023	.0584	.0033	.0838	34.7	6.7
200X200	.0021	.0533	.0029	.0737	33.6	6.2
250X250	.0016	.0406	.0024	.0610	36.0	4.4
270X270	.0016	.0406	.0021	.0533	32.2	4.7
300X300	.0051	.0381	.0018	.0457	29.7	3.04
325X325	.0014	.0356	.0017	.0432	30.0	4.40
400X400	.0010	.0254	.0015	.0370	36.0	3.3
500X500	.0010	.0254	.0010	.0254	25.0	3.8
635X635	.0008	.0203	.0008	.0203	25.0	2.63

Plain Dutch Weave Wire Mesh

Lxw	L.DxW.D	Micron retension Absolute ¦Ìm	Micron retension Nominal ¦Ìm
8X85	.014X.0126	318 £­ 340	250 £­ 255
12X64	.024X.0165	270 £­ 285	200 £­ 205
14X88	.020X.013	225 £­ 245	150 £­ 155
20X150	.0098X.007	155 £­ 165	100 £­ 105
24X100	.015X.010	115 £­ 125	80 £­ 85
30X150	.009X.007	95 £­ 100	65 £­ 70
40X200	.007X.0055	65 £­ 70	55 £­ 60
50X250	.0055X.0045	55 £­ 60	40 £­ 45
80X400	.0049X.0028	43 £­ 48	35 £­ 40

Twill Dutch Weave Wire Mesh

LxW	L.DxW.D	Micron retension Absolute ¦Ìm	Micron retension Nominal¦Ìm
20x250	.0098x.0079	110-120	98-105
30x360	.0098x.0060	90-100	80-84
40x560	.0070x.0040	70-75	47-52
120x400	.0040x.0025	50-55	37-43
120x160	.0040x.0025	40-45	28-32
80x700	.0040x.0030	35-40	24-26
200x600	.0024x.0018	28-32	19-21
165x800	.0028x.0020	24-26	14-16
165x1400	.0028x.0016	16-18	9-11
200x1400	.0028x.0016	12-14	5-6
250x1400	.0022x.0016	11-12	3-4
325x2300	.0015x.0010	8-9	2-3

Reverse Dutch Stainless Steel Wire Mesh
Mesh count		Wire dia.(mm)		Mesh thickness(mm)	Weight
warp	weft	warp	weft		Kg/m2
72	15	0.45	0.55	0.18	4.78
132	17	0.35	0.45	0.14	4.86
152	24	0.27	0.45	1.04	4.0
260	40	0.15	0.27	0.69	2.2
